Automatic Tracking Filling Machine
Features

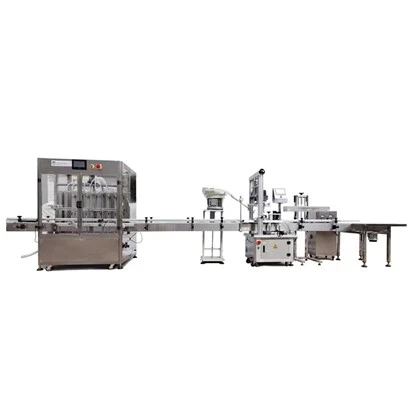

The full automatic tracking filling machine is designed for saving time on adjusting and testing machine, it can fill liquid or paste accurately by entering a certain filling volume. The PLC control method makes it easy to operate, the high speed working efficiency is ideal for medium or large scale production. It can work with the automatic capping machine and labeling machine to form a complete production line and realize high speed packaging work.
Machine Details
 | Automatic tracking nozzles, which can recognize different type of bottles.Greatly save the time of adjusting the machine |
| The valve body opens, the piston sucks material downward, the valve body switches, the piston pushes upward, and then the material goes to the filling nozzle |  |
 | Built-out touching screen, You can observe the operation of the machine while operating |
| We would use 6 motors on capping part to Improve mechanical performance to ensure that bottles will not block on the conveyor belt |  |
 | With automatic caps feeder, you can save one labor cost |
Technical Details
Model | CAWON-F100 |
Voltage | 110/220V 50-60HZ |
Filling Range | Maximum 5000ml |
Working Speed(base on water) | 20-80 bottles/min, base on your bottles size |
Filling Accuracy | ≤1% |
Conveyor size | 2000*100mm(L*W) |
Size of filling nozzle | OD15mm |
Size of air compressor connector | Φ8mm |
Power of whole machine | 800W |
Machine size | About 4100*900*1830mm |
Gross weight | 600kg |
