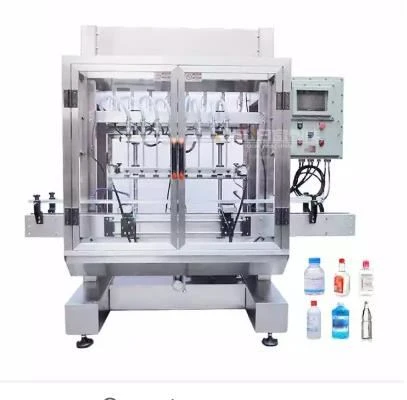

Water Filling Machine
This water filling machine is specially designed for the filling of pure water ,mineral water and other non-gas and sugar free bveverages in bottles.,it is an integrated equipment for bottle washing ,filling and capping .
Filling machine specification:
Machine output | 1000-30000BPH |
Air source pressure | 0.5-0.6MPa |
Rinsing pressure | 0.2-0.3 MPa |
Bottle height | 150-340MM |
Bottle diameter | Φ50-Φ110MM |
Rinsing water consumption | 0.3T/H |
Filling way | Constant pressure filling type |
Power | 3ph, 380V/50Hz, 2.1KW |
Machine dimension | 2000*1500*2400 mm (L*W*H) |
Weight | 1800Kg |
Features:
1)with bottle neck clipping transmission structure, the bottle conveyance is stable; very convenient and swift to use different bottles for filling in the same machine by adjusting the height of conveyor and several exchanging parts.
2)with micro-negative pressure filling theory, filling speed is quick and precision is high; the filling level is adjustable.
3)With spring type washing clipper, empty bottles are turned 180°along the guiding roll for inside rinsing; the washing nozzle adopts plum blossom shape multiple holes to rinse the bottle bottom, washing efficiency is high.
Filling and capping part of pet bottle filling machine:
1)The washing bottle, filling, sealing are connecting with the Star wheel, bottle neck transportation methods.
2)The rotating disk is all made of SUS304 stainless.
3)Filling method is gravity filling.
4)Filling valve manufactured by SUS304.
5)The filling valve structure design is reasonable, the filling quantity is accurate
6)The capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product.
Water Filling Machine Package
The water filling machine is packed by wooden box.
FAQ
1.How many days to finish water filling machine automatic ?
30 working days after received the down payment and technical confirmation of the label system
2.Could you arrange the engineer come to our factory for installation of filling machine?
Sure. We can arrange one engineer to your factory. And we also will suggest that you arrange one engineer come to China for training.
3.Would you have the manual book and spare parts for bottled water filling machine?
Sure. We will supply the English version manual book and spare parts with the water filling machine.
