Automatic Double Sides Labeling Machine For Shampoo Sanitizer Detergent

Product Description This automatic labeling machine is suitable for cylinder like bottles or cans.It is suitable for single side and double side labeling, the distance between front and back side label stickers is adjustable. This machine can be equipped with circumferential positioning...

Send Inquiry

Features

（1）Advanced HMI operation, PLC control;

（2） It is suitable for labeling most square objects and is widely applicable. Its appearance structure is made of 304 stainless steel.

（3） It has a stainless steel (aluminum profile) structure and a three-color indicator light to show the working status; the whole machine is beautiful and generous.

（4）New servo drive, fast labeling speed, stable labeling performance

china labeling machine

Machine Details

Using high-speed motor to improve mechanical performance, the maximum speed can reach 25 meters per minute

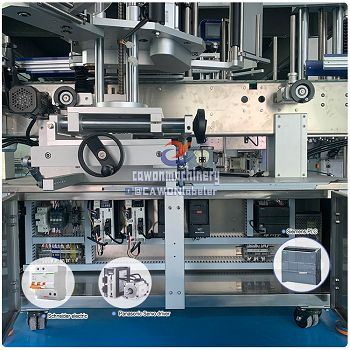

Beautiful circuit assembly is convenient for mechanical operation and maintenance
Use SICK advanced sensor, can identify transparent and opaque labels, improve mechanical compatibility

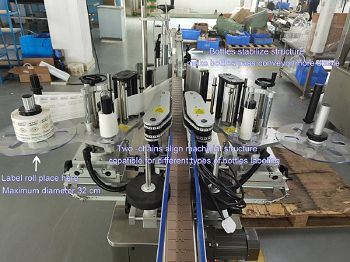

The double-chain correction structure allows some special bottles to enter the conveyor belt vertically to avoid label shifting.

Technical Details

parameter	description
Max producing speed	5000~8000BPH,base on your bottle
Conveyor speed	0~25m/min,can be adjusted
Labeling accuracy	±1mm
Label max height	200mm
Label max length	280mm
Machine weight	500
Bottle max thickness	130mm
Bottle min height	120mm
Bottle max height	400mm
Label inner diameter	φ76mm
Label outer diameter	φ400mm
(LxWxH) Machine size	3000×1450×1600 (mm)
Power	220V 50Hz 3000W

labeling machine factory
